McBrie, LLC, Structural Design & Sales



Commercial - New Construction Projects

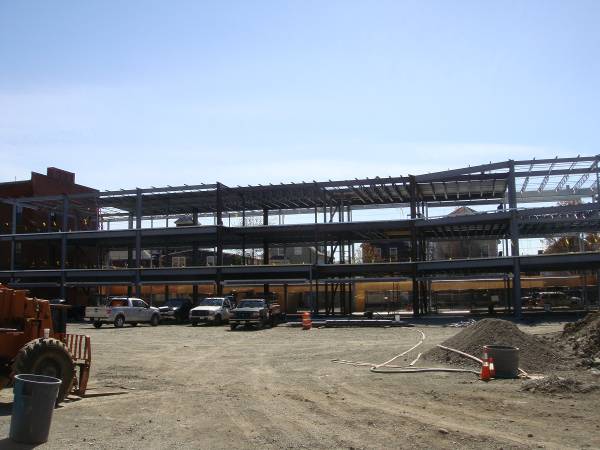

  Warwick Place, Marblehead, MA
Warwick Place is the largest new building in downtown Marblehead. It is a three story multi-use building. Included in the demolition of the existing buildings on site was the historic Warwick Cinema. The right side of the building will have a new theater and the historic Warwick Cinema marquee will be recreated and supported on a free standing steel frame. The building is a combination of structural steel, steel joists, metal deck and concrete floors. The lateral system consists of steel braces and moment frames to allow for expansive store fronts and open floor plans. The high water table created unique challenges for this project, so the basement and depressed slabs had to be designed for the hydrostatic pressure from the displaced water.




McBrie, LLC Structural Design & Sales - Warwick Place
McBrie, LLC Structural Design & Sales - Warwick Place

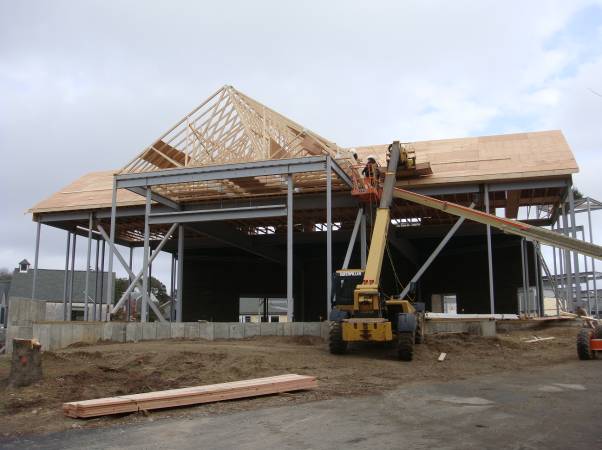

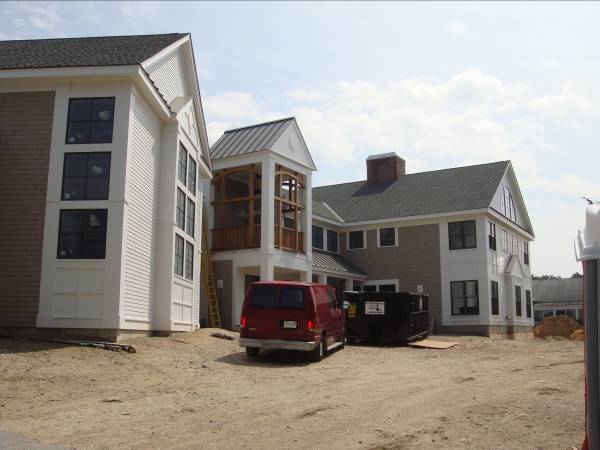

  Riverview School - East Sandwich, MA
The Riverview School is an independent coeducational residential school, providing a caring community for adolescents and young adults with complex language, learning and cognitive disabilities.

McBrie was the Structural Engineer of Record on the project, which included a new student union, auditorium and administration building. The framing system was a combination of steel and pre-engineered wood trusses and the lateral system was a combination of steel braces and wood shear walls.

The large open auditorium and the curved design of the student union required special attention to detailing.





McBrie, LLC Structural Design & Sales - Riverview School
McBrie, LLC Structural Design & Sales - Riverview School

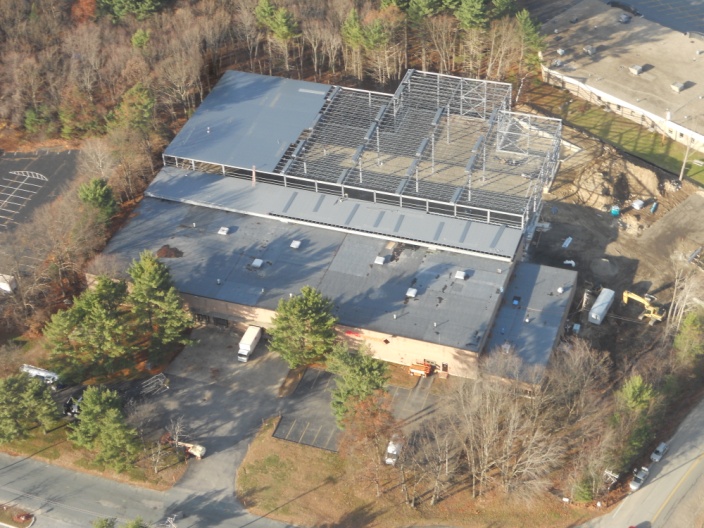

One Cornell Place - Wilmington, MA
McBrie acted as the structural engineer of record for the contractor as part of the design/build team. The project consisted of a 40,000 square foot high bay addition. The drifting snow condition to the existing low roof was taken care of with a 10,000 square foot over framed roof posted to existing columns, thus eliminating interference with the existing operations below.



McBrie, LLC Structural Design & Sales - One Cornell Place
McBrie, LLC Structural Design & Sales - One Cornell Place

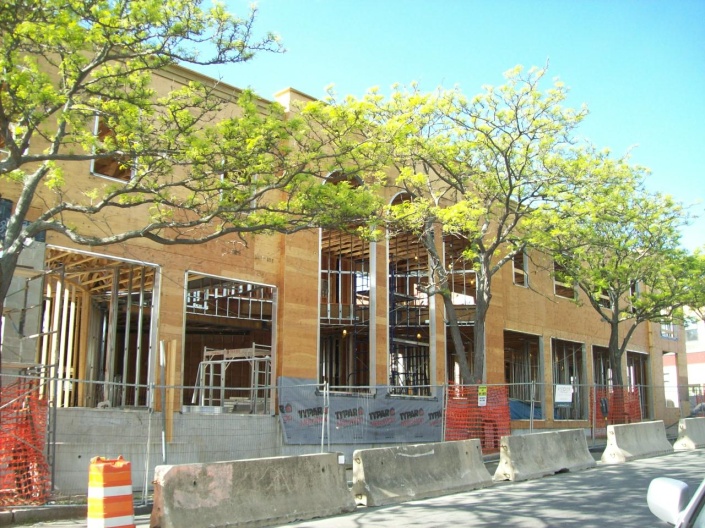

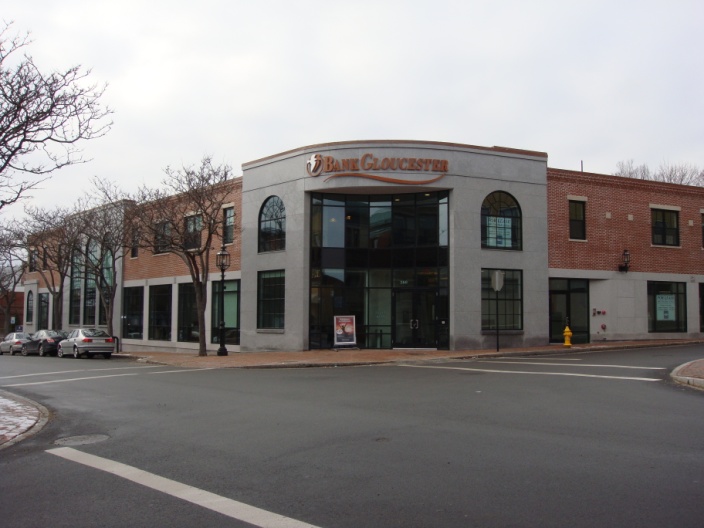

  Gloucester Co-Operative Bank, Gloucester, MA
This large open commercial space had high constructability demands due to the site restrictions, being in downtown Gloucester, and it required the front of the building to be placed on an existing 30 inches thick granite foundation wall that required field cutting and runs along a side street at an obtuse angle to Main Street. This steel/wood framed structure consists of two stories of office space and a large open lobby with 20 foot high windows facing the water.


McBrie, LLC Structural Design & Sales - Gloucester Coop
McBrie, LLC Structural Design & Sales - Gloucester Coop

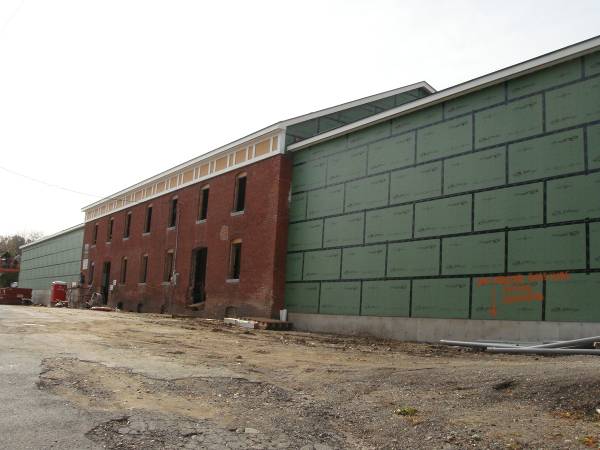

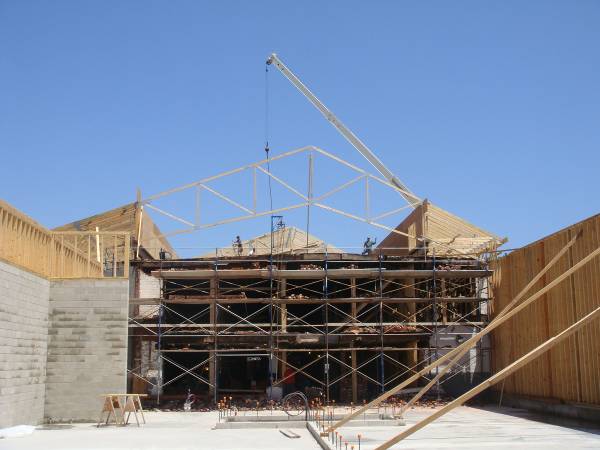

Ipswich Ale Brewery, Ipswich, MA
Ipswich Ale Brewery is a local microbrewery that was established in 1991. Through the years their growing popularity has caused them to outgrow their original brewing, bottling and office space. They decided to stay in Ipswich and took on renovating and adding onto an existing and vacant processing plant.

The original brick building brick building exterior walls and first floor framing were maintained and a new roof of pre-engineered wood scissor trusses and new second floor framing were added. On the right side of the brick building a new brew house was added which has 20 foot high wall and pre-engineered wood roof trusses. Steel cable braces and wood shear walls complete the lateral system. On the left of the brick building is the packaging and loading dock, which were constructed of wood shear walls, CMU block shear walls and pre-engineered wood roof trusses.



McBrie, LLC Structural Design & Sales - Ipswich Ale
McBrie, LLC Structural Design & Sales - Ipswich Ale

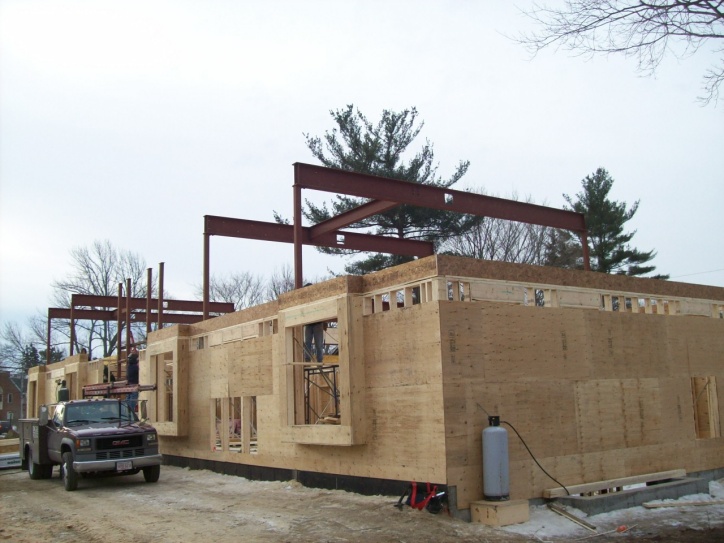

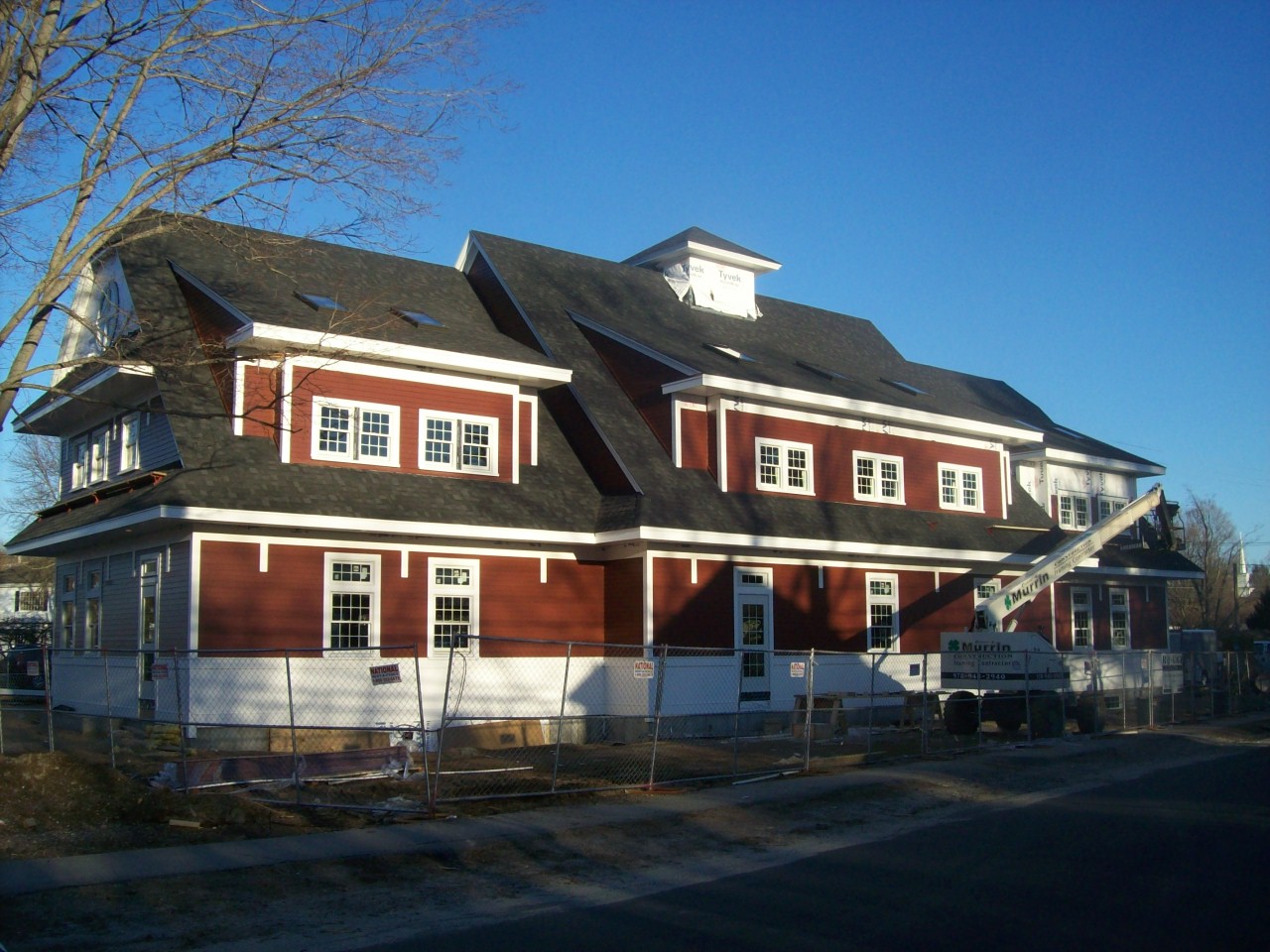

  Topsfield Depot - Topsfield MA
McBrie, LLC provided the structural design and construction control services, as well as provided the required structural steel, on this three level wood and steel framed office building with full basement and cathedral office space on the third floor.


McBrie, LLC Structural Design & Sales - Topsfield Depot
McBrie, LLC Structural Design & Sales - Topsfield Depot
