McBrie, LLC, Structural Design & Sales



Commercial - Additions & Renovations

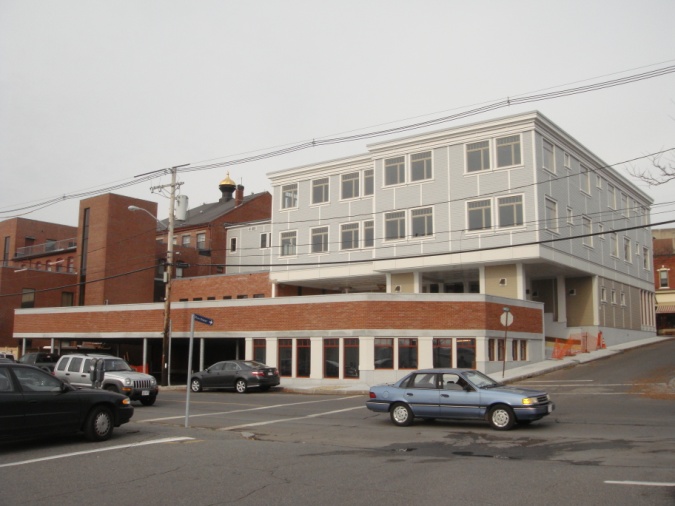

  Andrews Gray Block - Gloucester, MA
Cape Ann Savings Bank revitalized a vacant corner of downtown Gloucester by demolishing existing buildings and in their place erecting an elevated parking deck and a three story multi-use building. The parking deck consists of long span steel beams and a composite concrete deck. Since the parking structure is only a few hundred feet from Gloucester Harbor special consideration was taken in the concrete mix design to minimize corrosion. The multi-use building was designed using a steel frame with open web wood trusses. Steel braces along Main Street were designed using round gusset plates creating a geometric shape that blended with the architecture. Wood shear walls worked in conjunction with the steel braces to complete the lateral system.




McBrie, LLC Structural Design & Sales - Andrews Gray Block
McBrie, LLC Structural Design & Sales - Andrews Gray Block

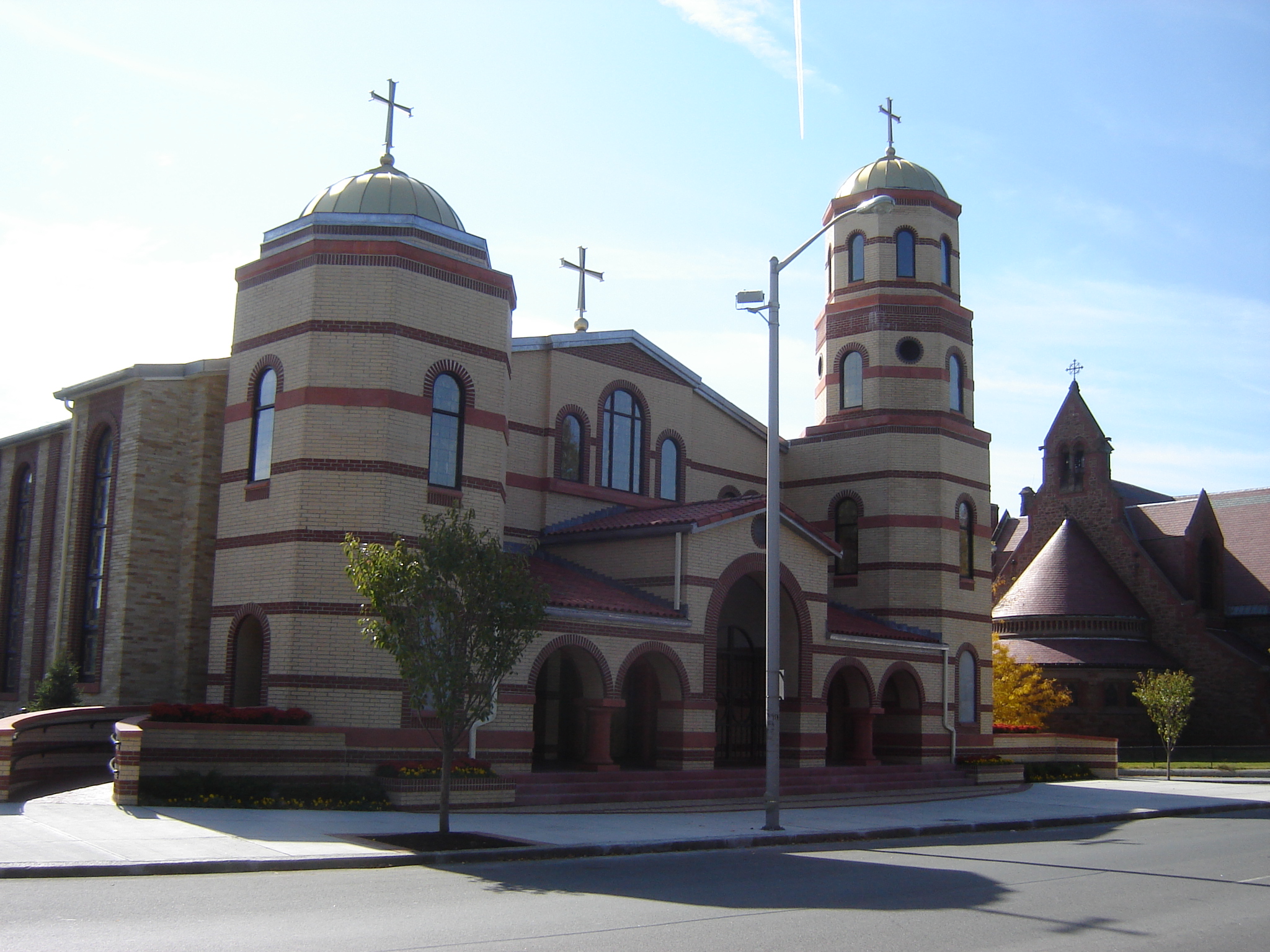

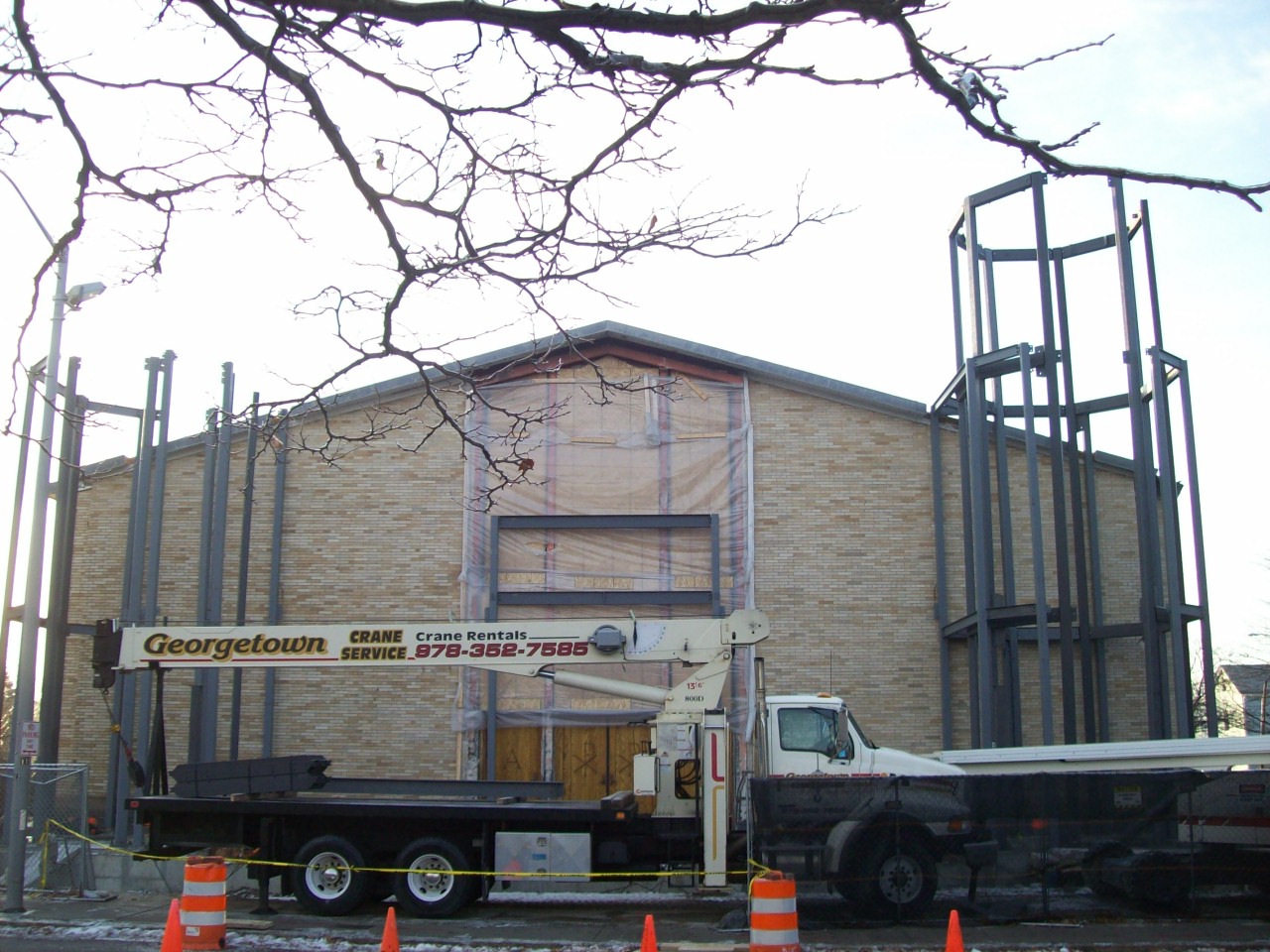

  St. George's Greek Orthodox Church - Lynn, MA
This major church entry renovation added two steel towers, one 35 foot tall tower and one 55 foot tall tower, along with major interior renovations to what is now the cornerstone of the Lynn Commons.




McBrie, LLC Structural Design & Sales - St Georges
McBrie, LLC Structural Design & Sales - St. Georges

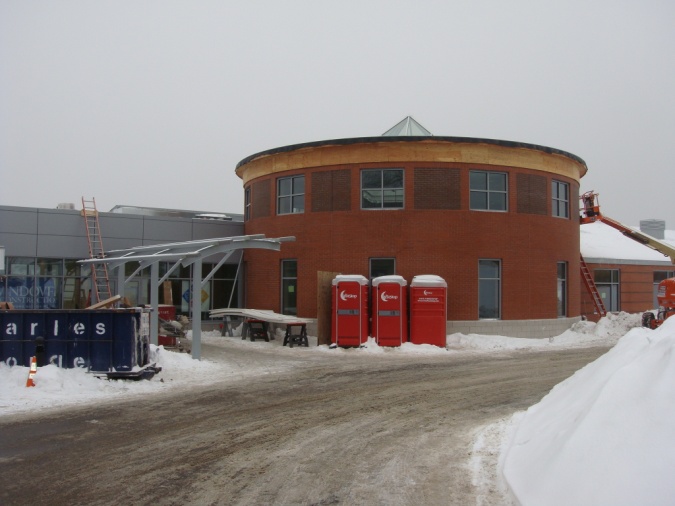

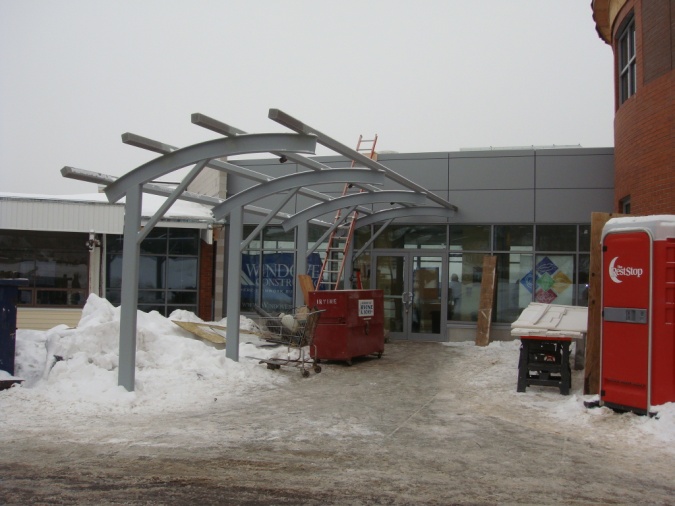

  Beverly School For The Deaf -Beverly, MA
Beverly School for the Deaf is a 30,000 square foot addition to the original BSD in Beverly, MA that provides their students with a state of the art Center for Communications. The project includes multiple two story spaces and a main hallway with a 25 foot ceiling up to windows in the clerestory that let in natural light. It features a circular rotunda with 18 foot high walls up to a flat roof with a large skylight in the center. The structure is a steel concentrically braced frame with wood roof trusses on timber stud walls. The structure meets with the original building at a double CMU firewall.


McBrie, LLC Structural Design & Sales - Beverly School For Deaf
McBrie, LLC Structural Design & Sales - Beverly School for Deaf

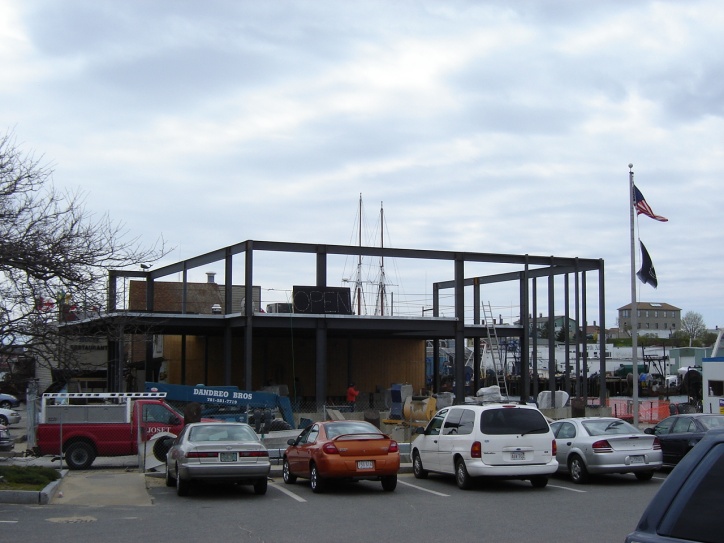

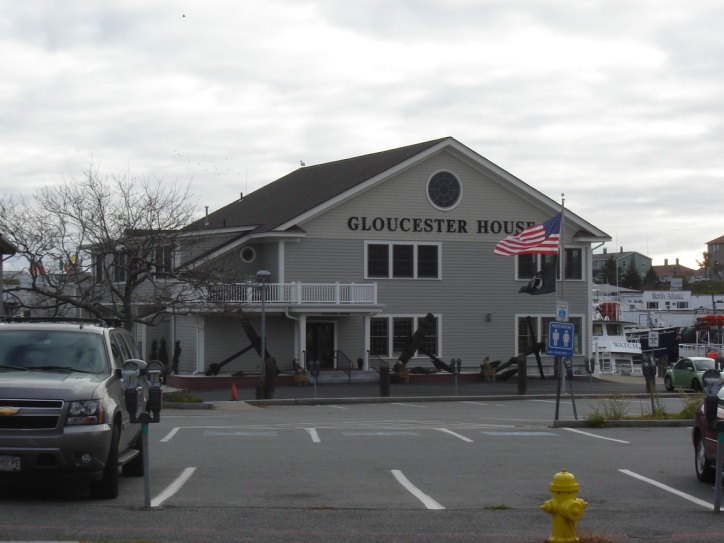

  Gloucester House Restaurant - Gloucester, MA
Renovation and expansion of one of Gloucester’s historic restaurants. The two story addition was constructed of composite steel beams and laminated wood roof trusses. Full height columns were designed to resist wind and support two story windows. The second floor beams were cantilevered to maintain the angled proportion of the building.




McBrie, LLC Structural Design & Sales - Gloucester House
McBrie, LLC Structural Design & Sales - Gloucester House
