McBrie, LLC, Structural Design & Sales



Residential - Condominiums, Townhouses & Dormitories


  Peabody Crossing II, Peabody MA

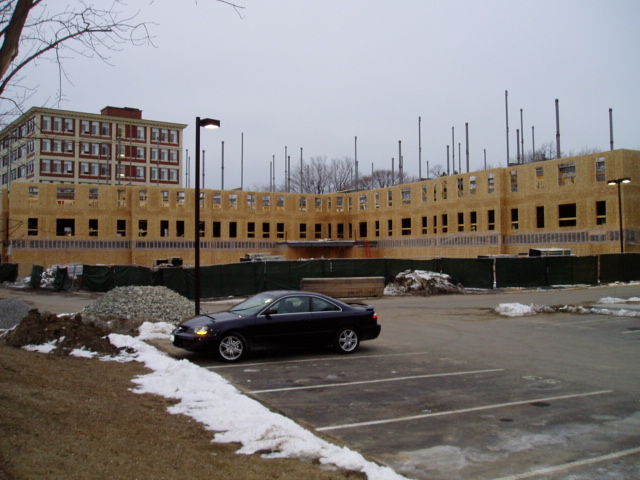

McBrie, LLC. provided the structural design and construction control services on this four story condominium building consisting of a P.I.F. foundation, steel beam and column grid with open web wood truss infill. The first floor was a concrete slab on metal deck and steel frame with transfer beams that allowed for lower level parking. The roof is flat with a mansard roof creating a sunken roof deck for mechanical equipment.




McBrie, LLC Structural Design & Sales - Peabody Crossing
McBrie, LLC Structural Design & Sales - Peabody Crossing



  Montserrat College of Art Dormitory, Beverly, MA

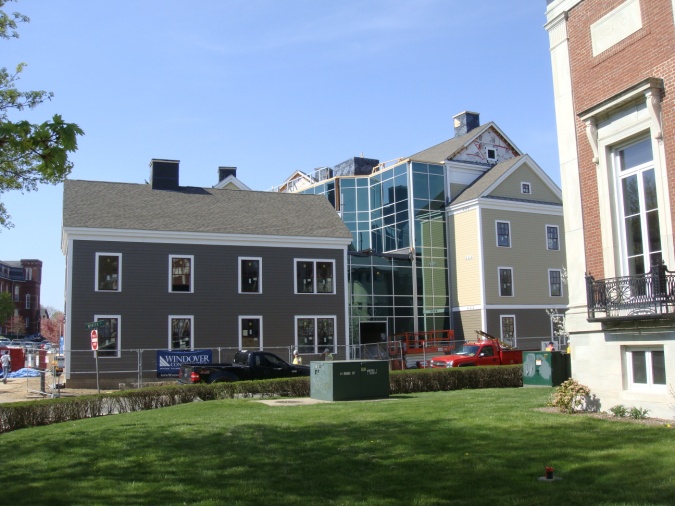

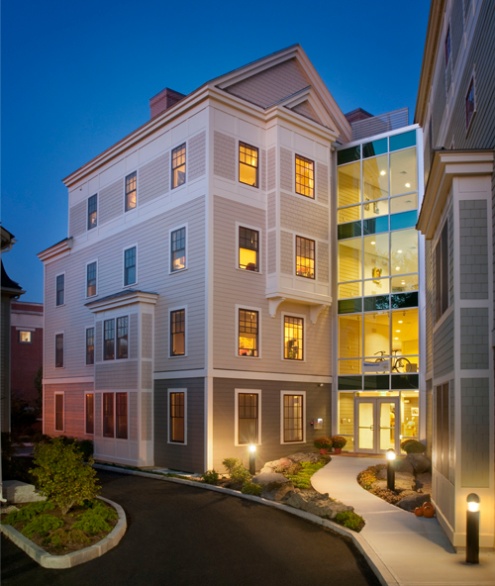

Design of a new 27,000 square foot, 78 bed dormitory for the Montserrat College of Art. The building is designed as a collection of four traditional residential wood structures (2-4 stories) all unified by a glass connector hall.


McBrie, LLC Structural Design & Sales - Montserrate College
McBrie, LLC Structural Design & Sales - Montserrat College





  Johnson Woods Condominiums, Reading MA

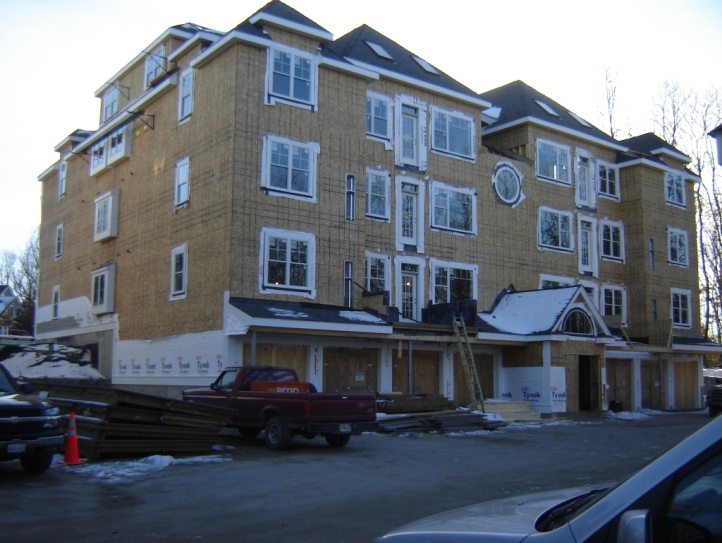

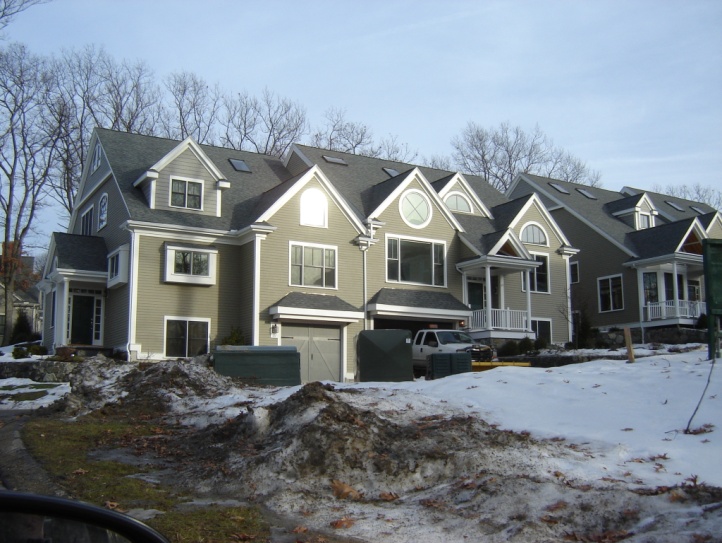

McBrie, LLC provided the structural design and construction control services for two 12-unit residential condominium buildings of a high-end residential townhouse/condominium development. Both buildings have lower level parking, decks & cathedral 4th floor penthouses.


McBrie, LLC Structural Design & Sales - Johnson Woods
McBrie, LLC Structural Design & Sales - Johnson Woods



  Woodlands Stable Building, Belmont MA

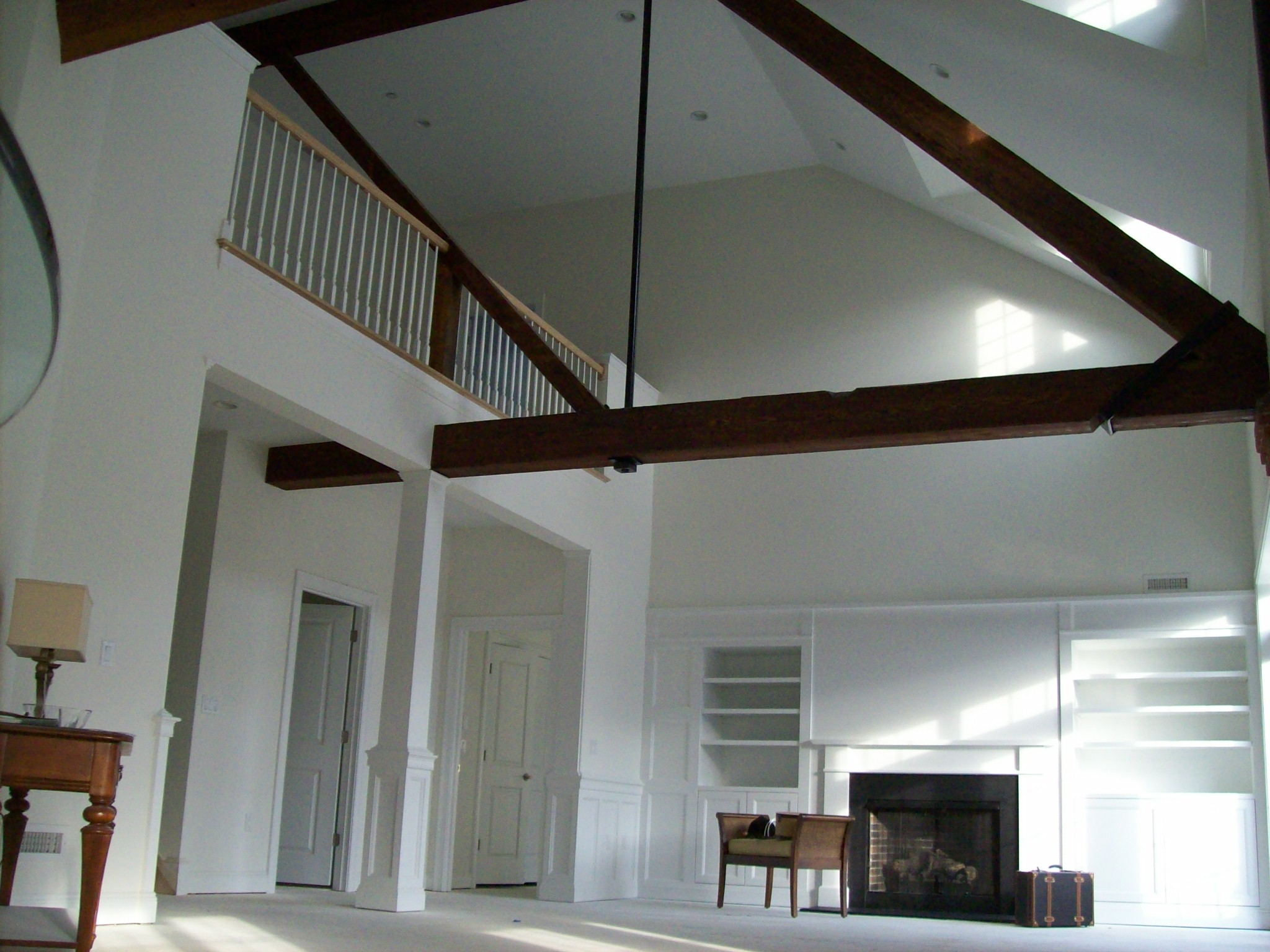

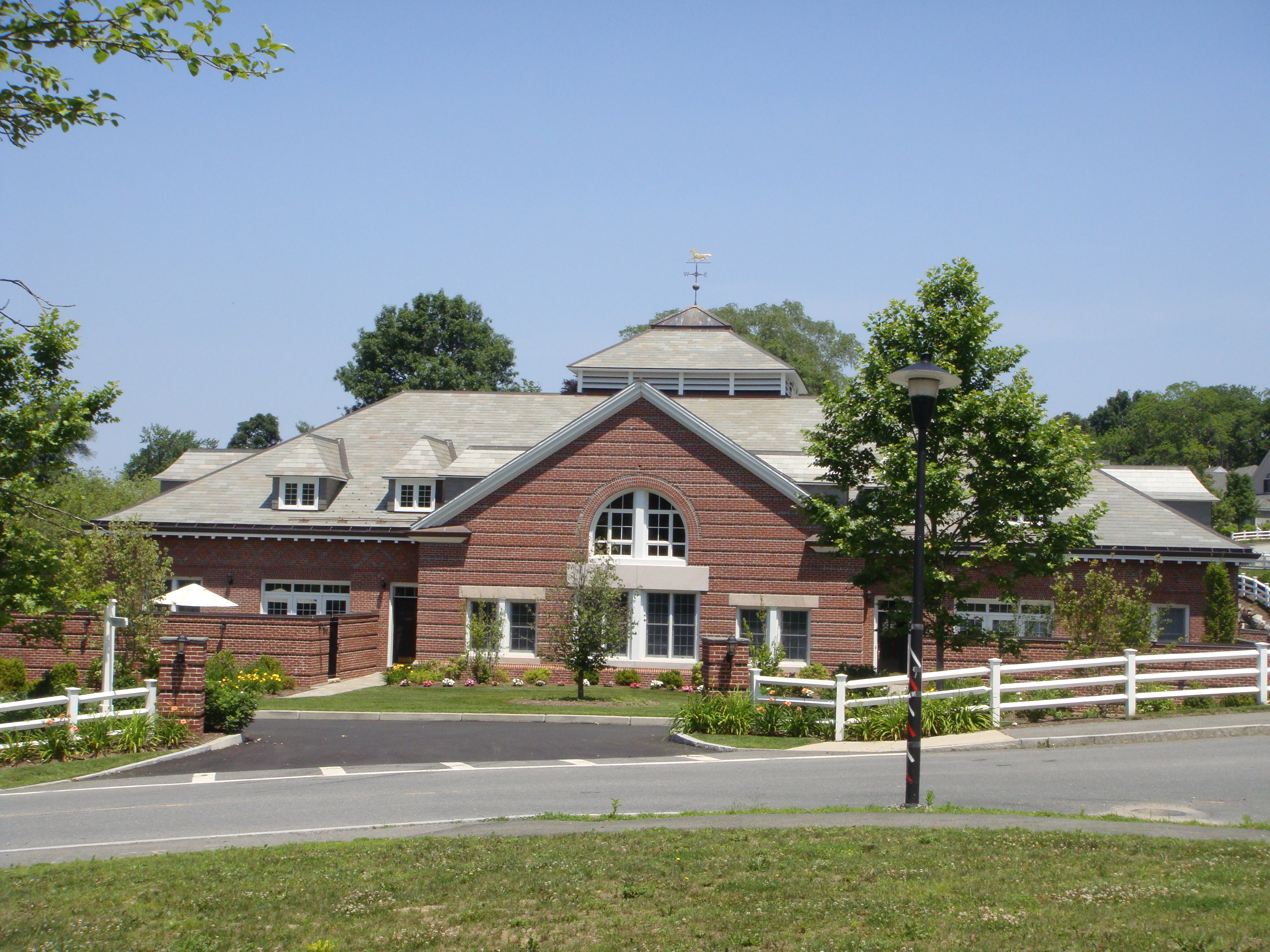

McBrie, LLC provided the structural design and construction control services of an old horse stable building made from heavy timber and roof trusses being converted into four 3500 square foot condominiums at McLean Hospital in Belmont, MA. The existing brick shell of the building was maintained along with the original roof form. Heavy timber roof trusses spanning fifty feet were modified to accommodate two story open spaces with some left exposed in this rustic yet modern design.


McBrie, LLC Structural Design & Sales - Woodlands Stable
McBrie, LLC Structural Design & Sales - Woodlands Stable


  Woodlands at Belmont, Belmont MA
Woodlands at Belmont Hill is a two phase townhouse condominium project that consists of 31 buildings that make up over 100 single residences of approximately 5,500 square feet each. There are six different unit types that each have a two car garage and a vast two story open great room that overlooks the Boston skyline from Belmont Hill.


McBrie, LLC Structural Design & Sales - Woodlands at Belmont
McBrie, LLC Structural Design & Sales - Woodlands at Belmont




  Johnson Woods Townhouses, Reading MA

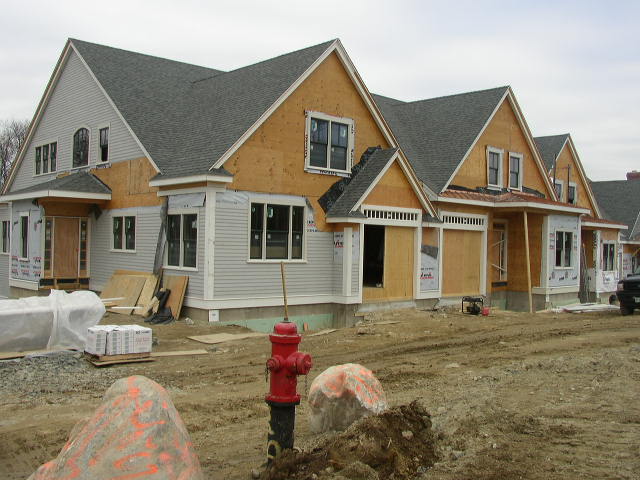

The townhouses range from 2900 – 3700 square feet, which have expansive cathedral ceilings and open layouts. Wood beams were designed to work within the roof framing to provide the cathedral spaces and open architectural layout and concept. Each building undergoes minor modifications due to site conditions, the developer’s latest design ideas and in some cases, the purchasers’ requested changes.


McBrie, LLC Structural Design & Sales - Johnson Woods Townhouses
McBrie, LLC Structural Design & Sales - Johnson Woods Townhouses
